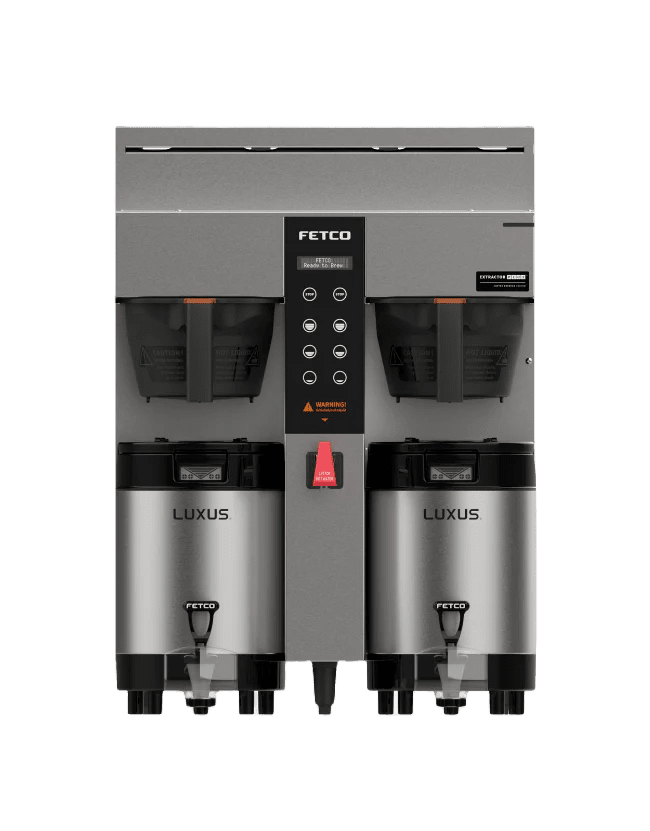

Fetco - CBS-1232 Plus Series Twin Station Coffee Brewer

The CBS-1232 Plus Series Twin Station Coffee Brewer is an ideal beverage brewing system for low- to medium-demand self-serve locations, including convenience stores, cafeterias, specialty cafés, and office coffee service (OCS) environments. Engineered for smaller batch brewing applications, this dependable brewer delivers the trusted quality, performance, and durability associated with Extractor® products, all while remaining cost-effective.

Standard Features

• Plastic brew basket
• Brew basket detection sensor
• Manual hot water dispensing faucet
• ECO energy-saving mode
• USB connectivity feature
• Electrical lattice system
• Laser-welded tank construction
• Push-button control interface

Specifications

Dimensions

• Height: 26.25 in / 66.7 cm
• Width: 19.75 in / 50.2 cm
• Depth: 20.5 in / 52 cm
• Shipping Weight: 55 lbs / 25 kg

Capacity

• Tank Capacity: 5.48 gal / 20.74 L
• Output per hour (8 oz / 236 ml cups): 254
• Output per hour (12 oz / 355 ml cups): 169
• Output per hour (16 oz / 473 ml cups): 127
• Output per hour (20 oz / 591 ml cups): 101

Standard Electrical Configuration

• Electrical Connection: Terminal Block
• Voltage: 208–240 V
• Amperage: 17.1–25.5 A
• Phase: Single Phase

Water Requirements

• Water Inlet Size: 3/8" Male Flare
• Minimum Flow Rate: 1.5 gpm
• Required Water Pressure: 20–75 psig
